ISEKI TLE Compact Tractor Range
High power and lift capacity, simple controls, premium economy range with same unrivalled quality and reliability

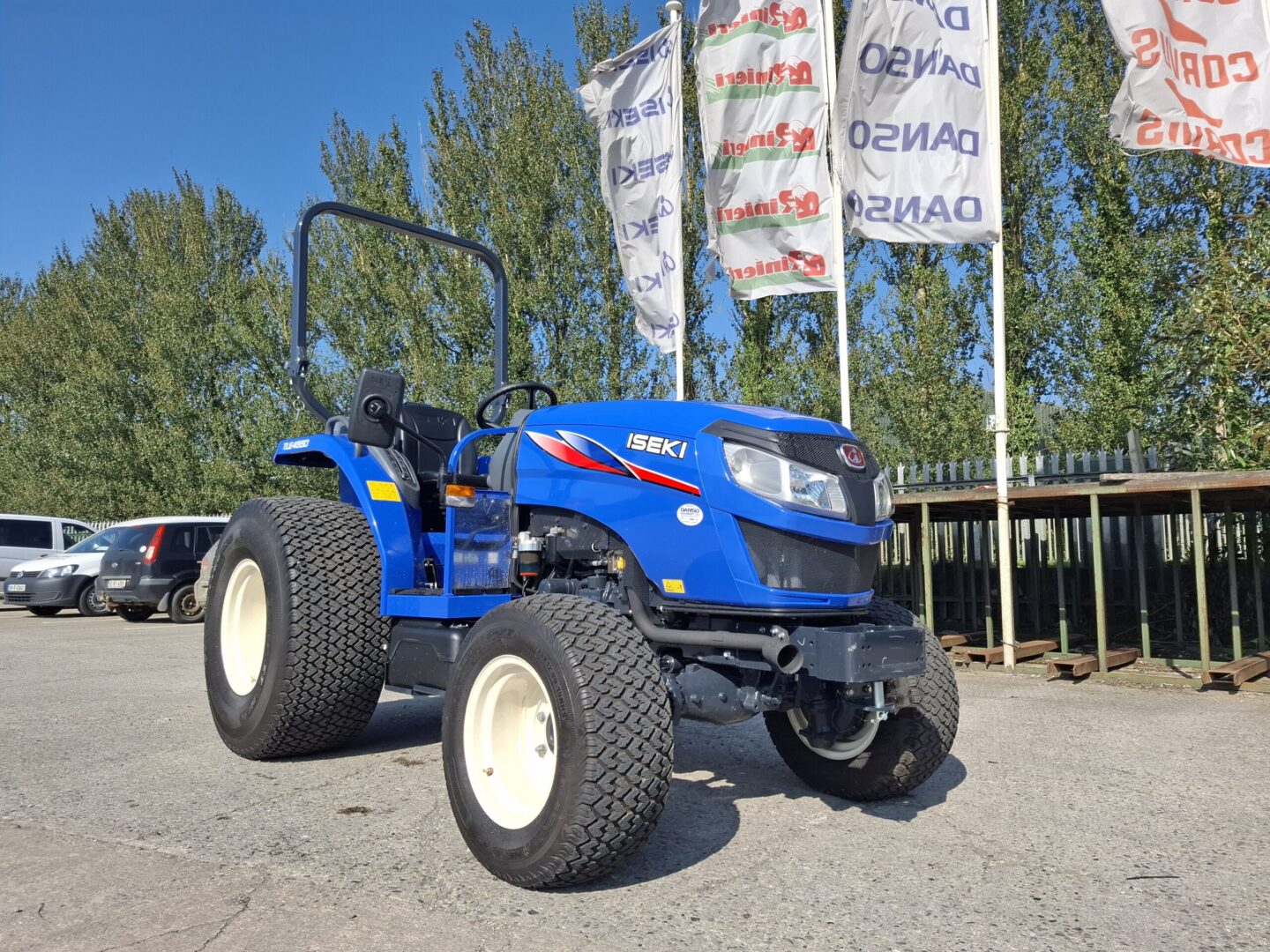

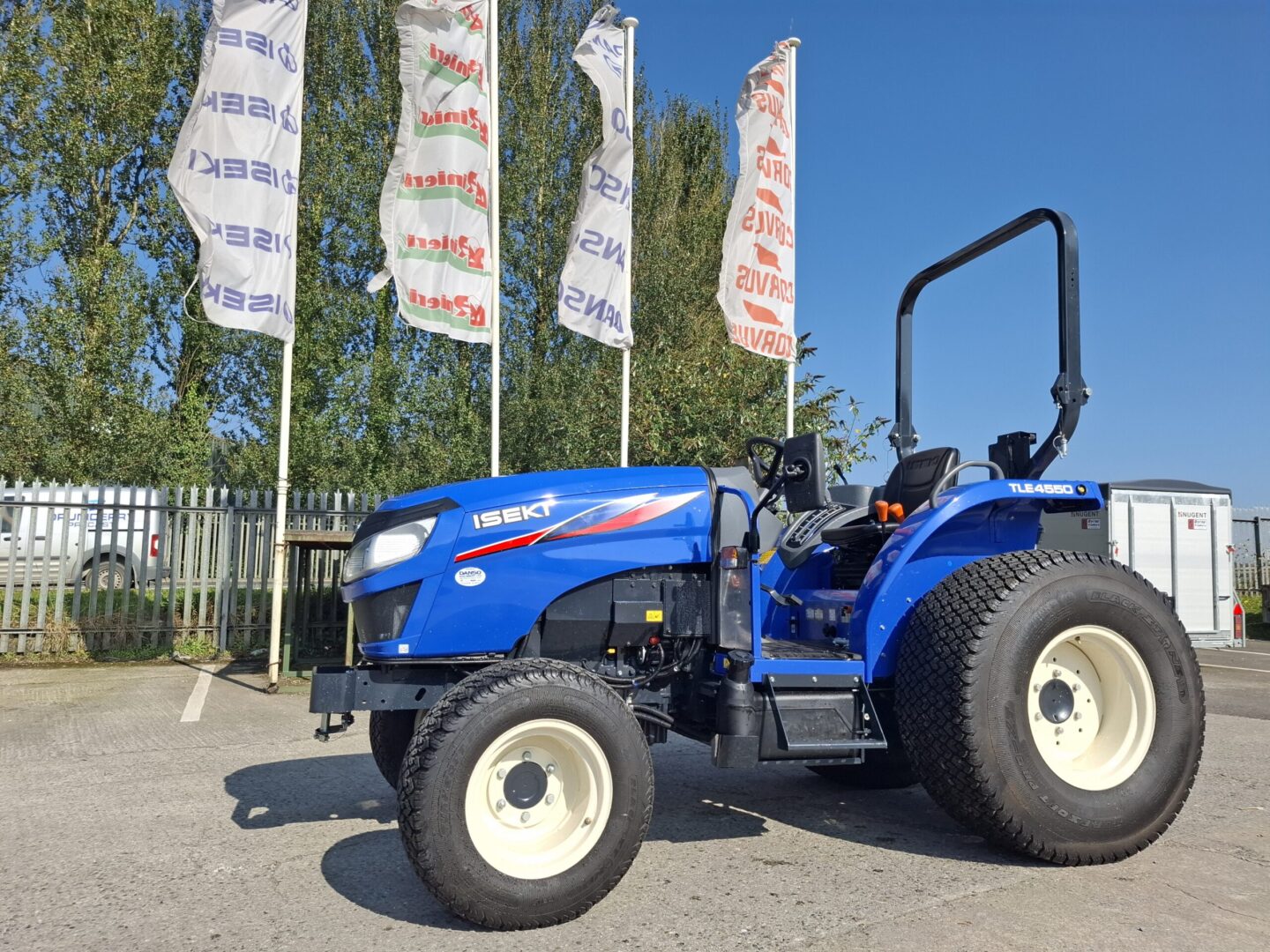

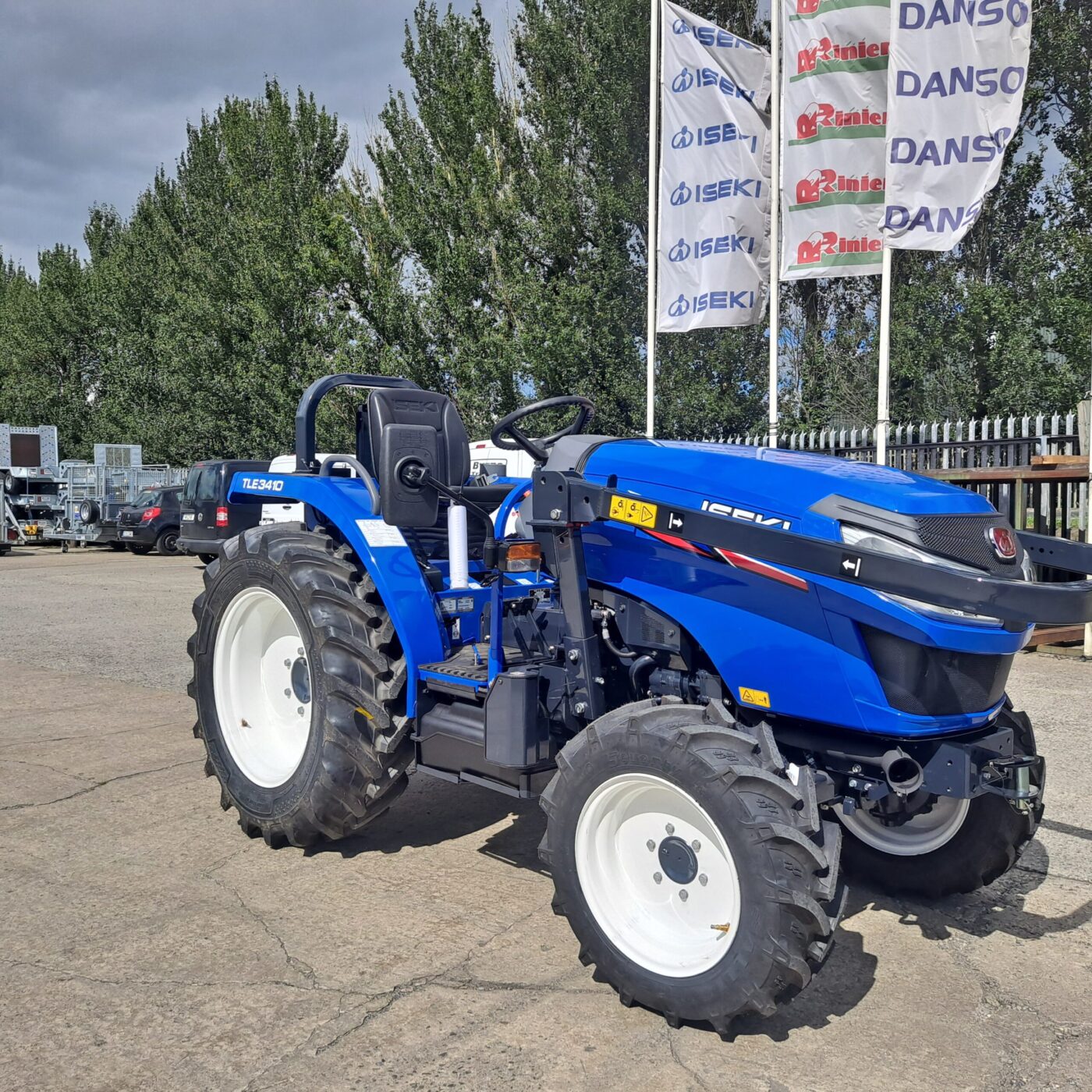

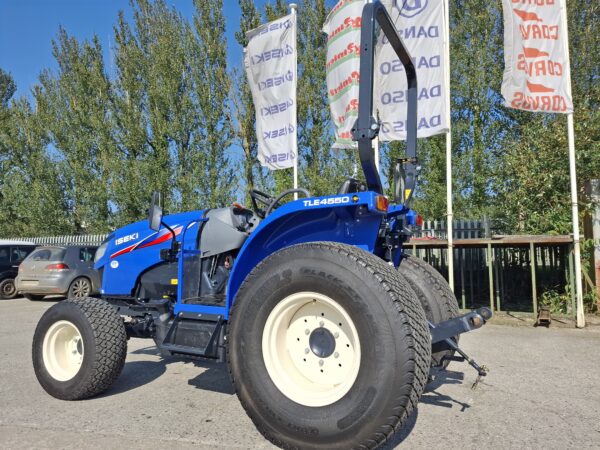

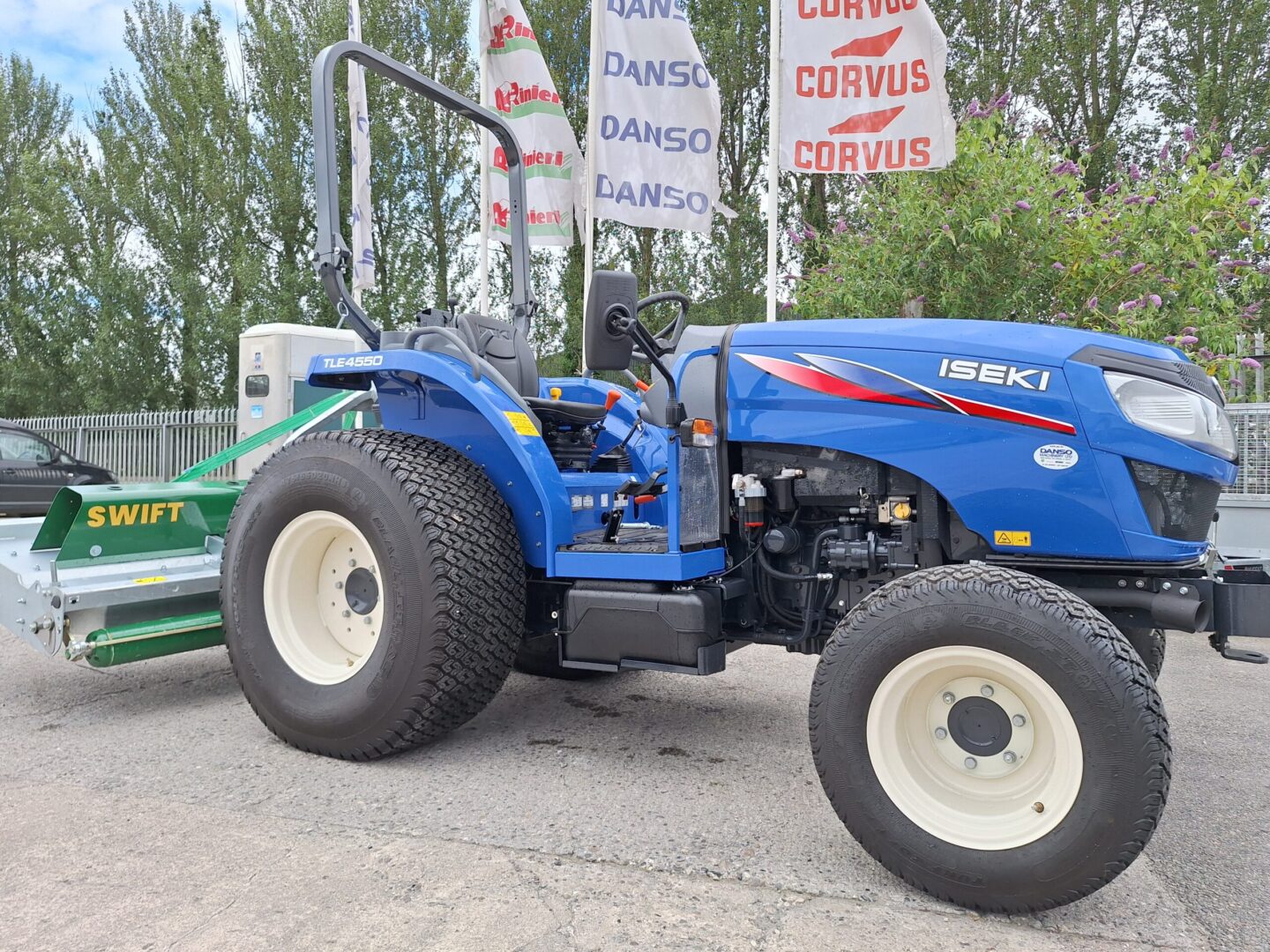

TLE Range (TLE3410 & TLE4550)
The premium economy range of quality ISEKI built tractors feature high horsepower and simple controls making them excellent value for money. All of this whilst offering the same unrivalled ISEKI reliability, high lift capacity and performance.
TLE tractors can be used on a wide range of applications, from smallholders to sport pitches, with 40 hp to 55 hp engines, hydrostatic or mechanical transmissions, spacious operator platforms, lift capacity of up to 1200 kg and optional pick-up hitch (55hp model) without compromising on quality, reliability or functionality.
Features at a Glance:

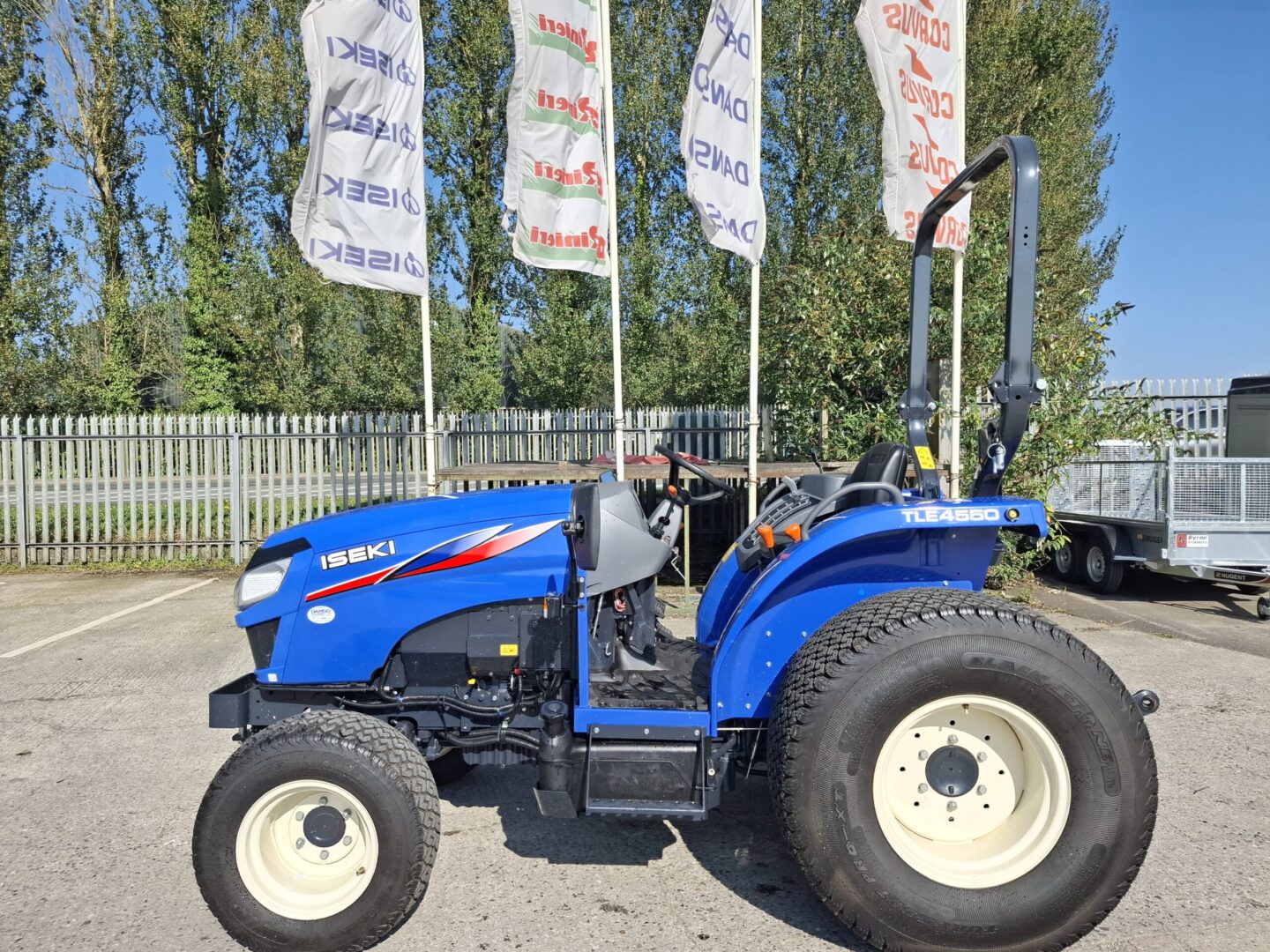

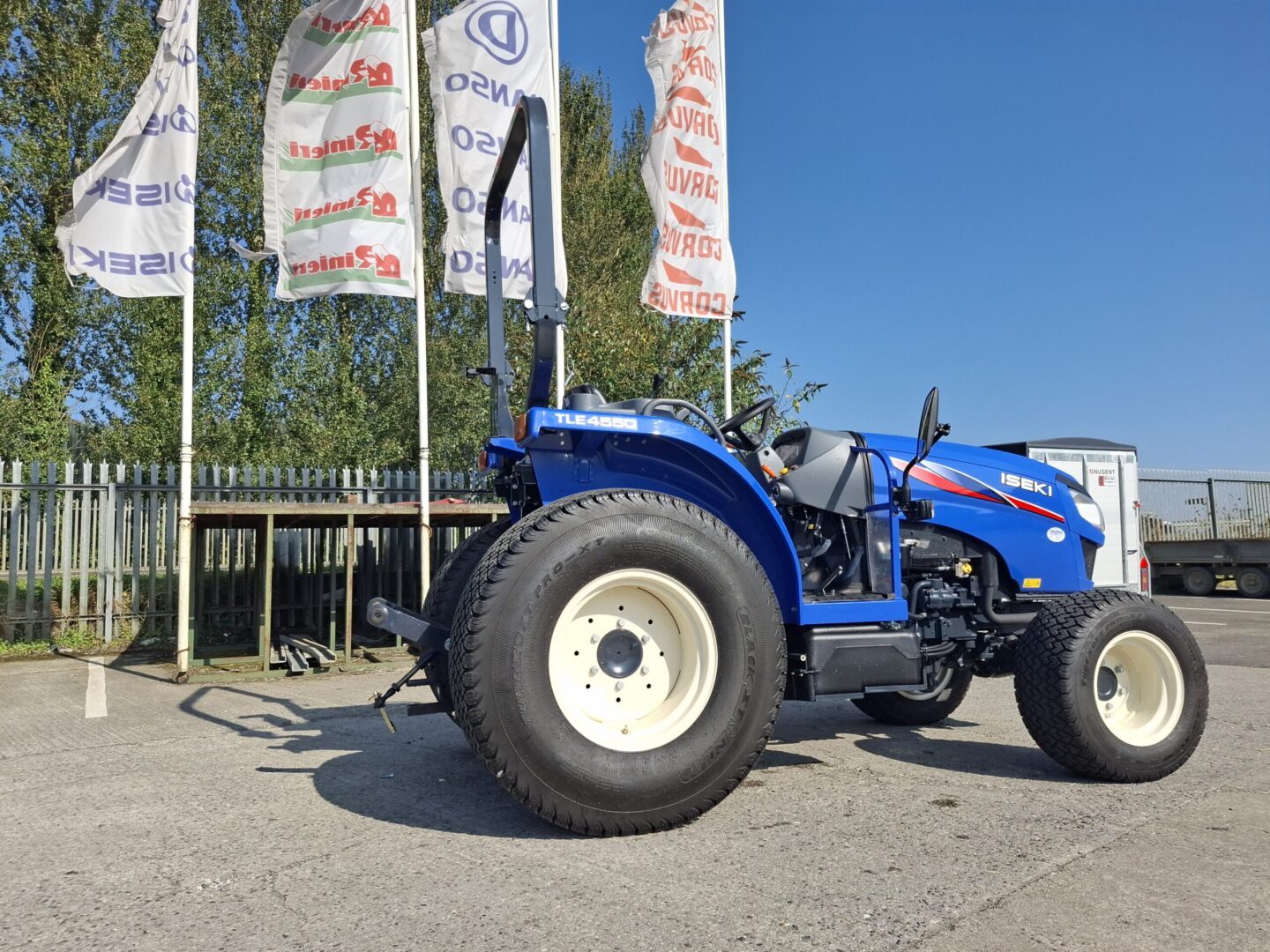

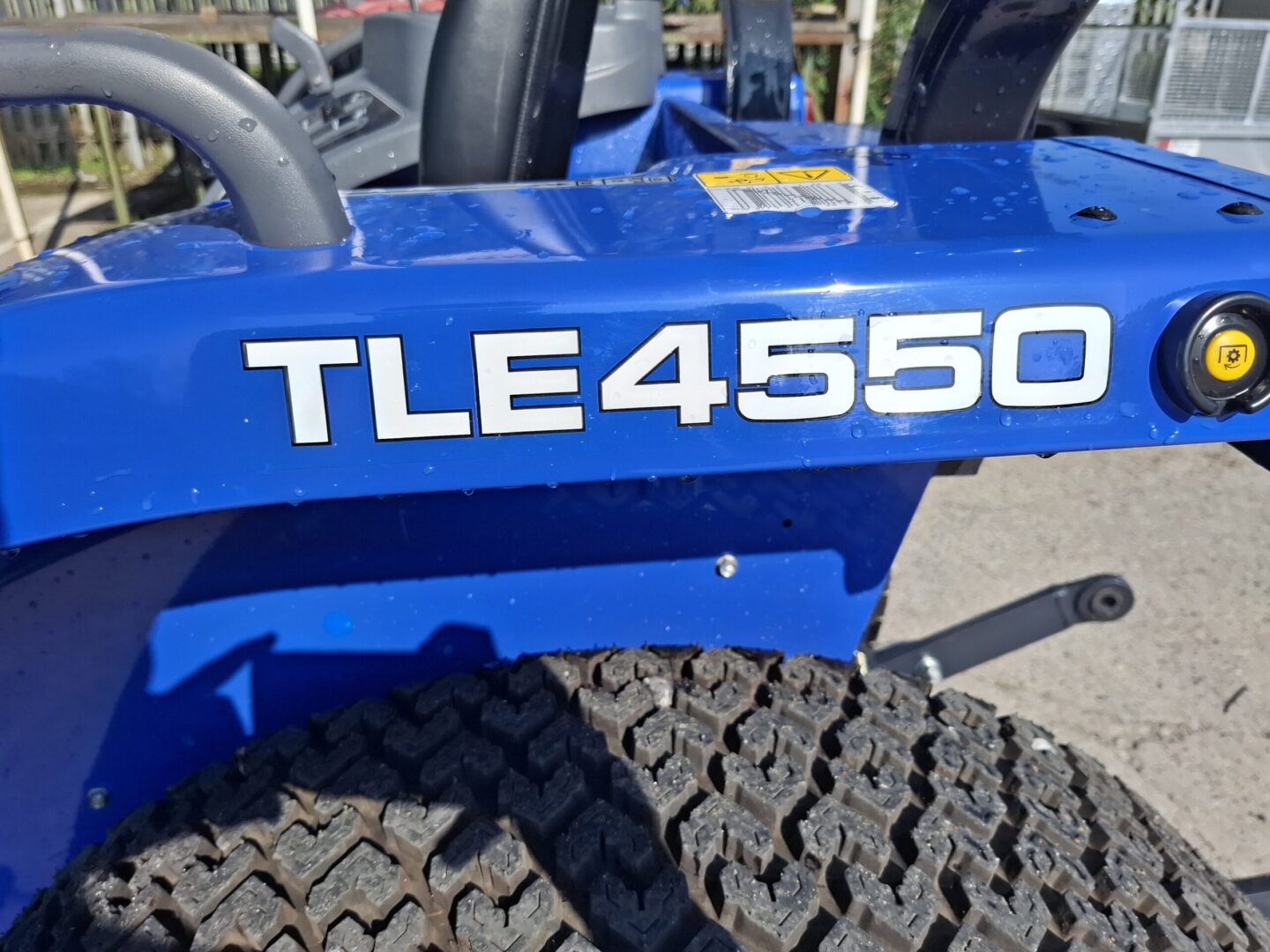

- 4-Cylinder 2434cc Turbo Diesel Engine with 55hp (TLE4550)

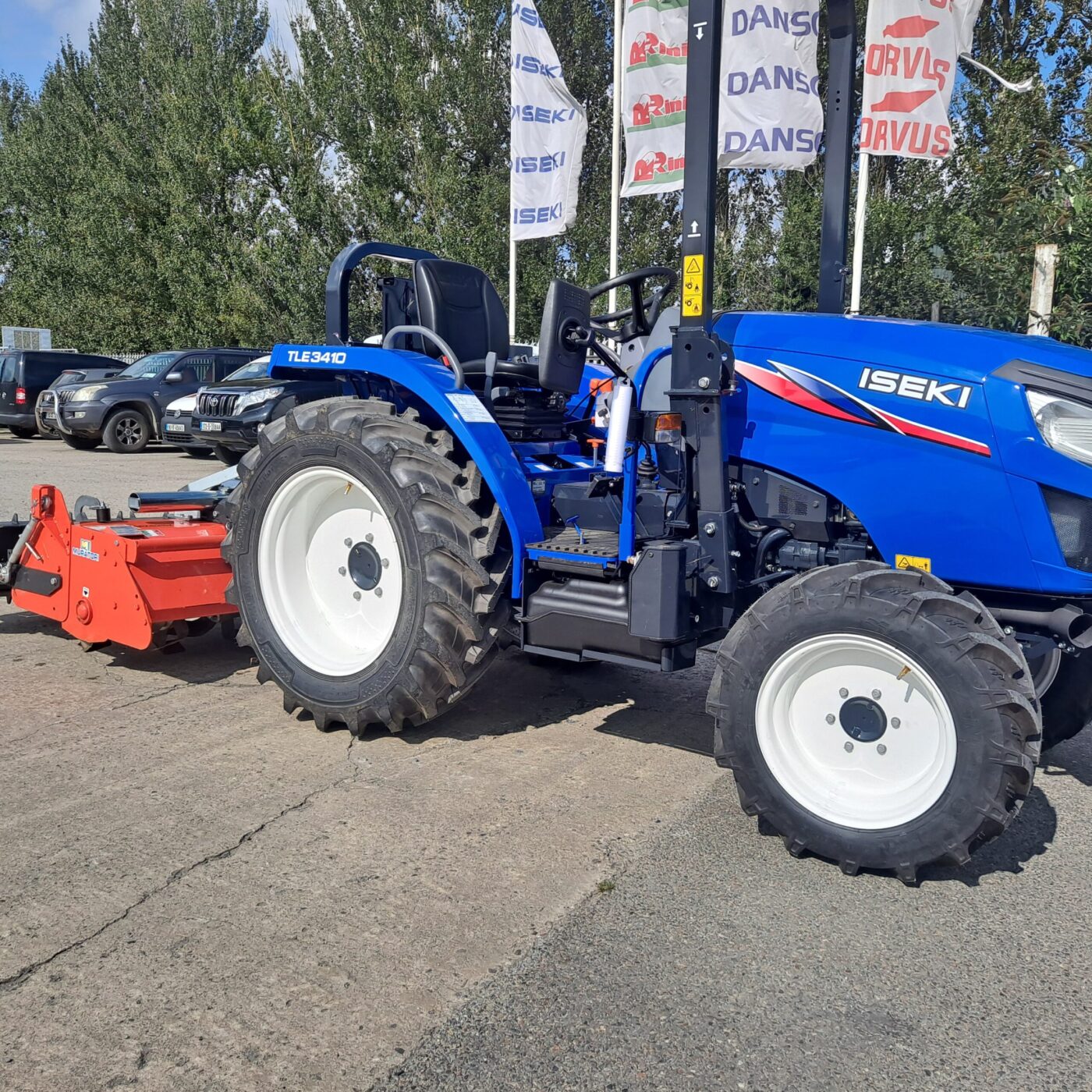

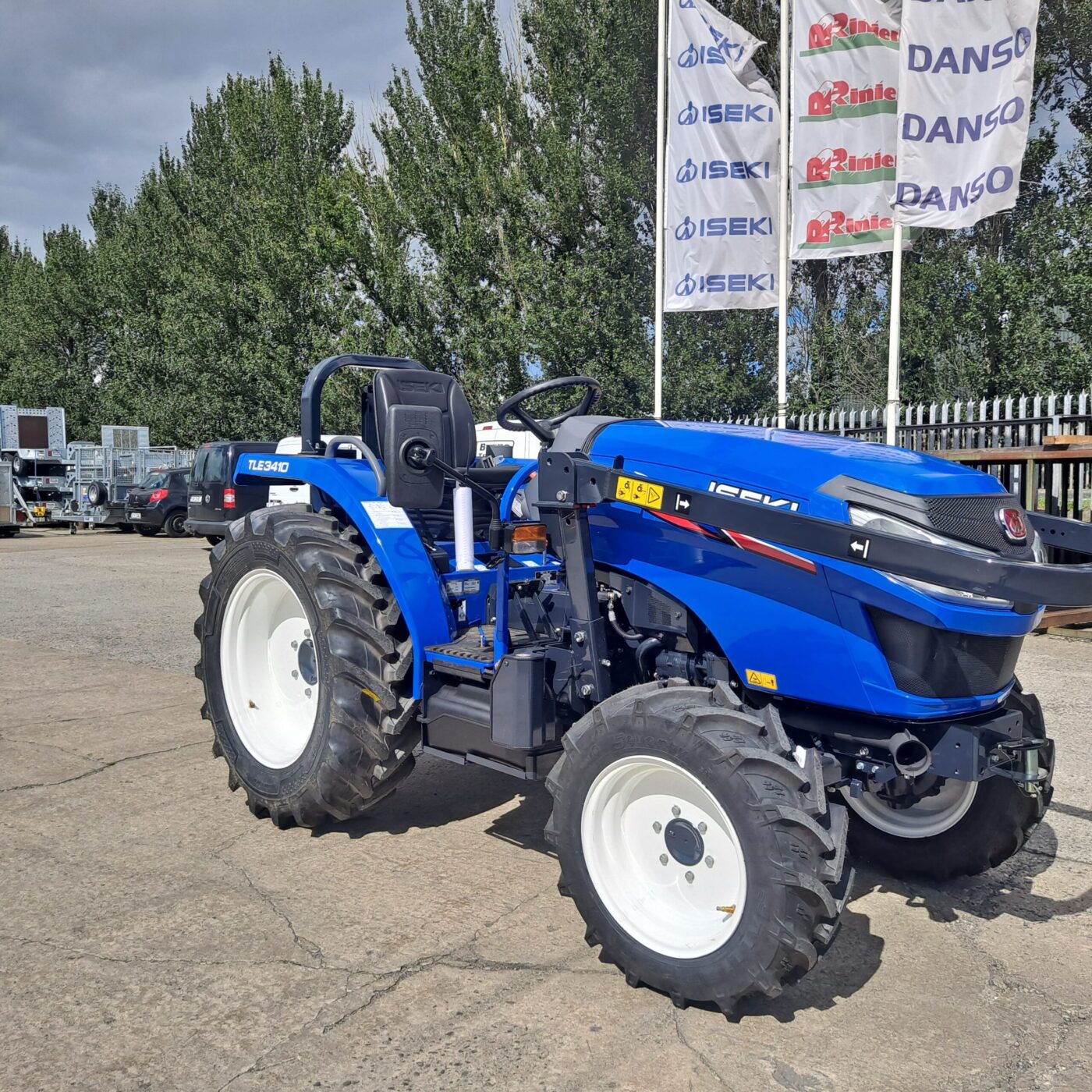

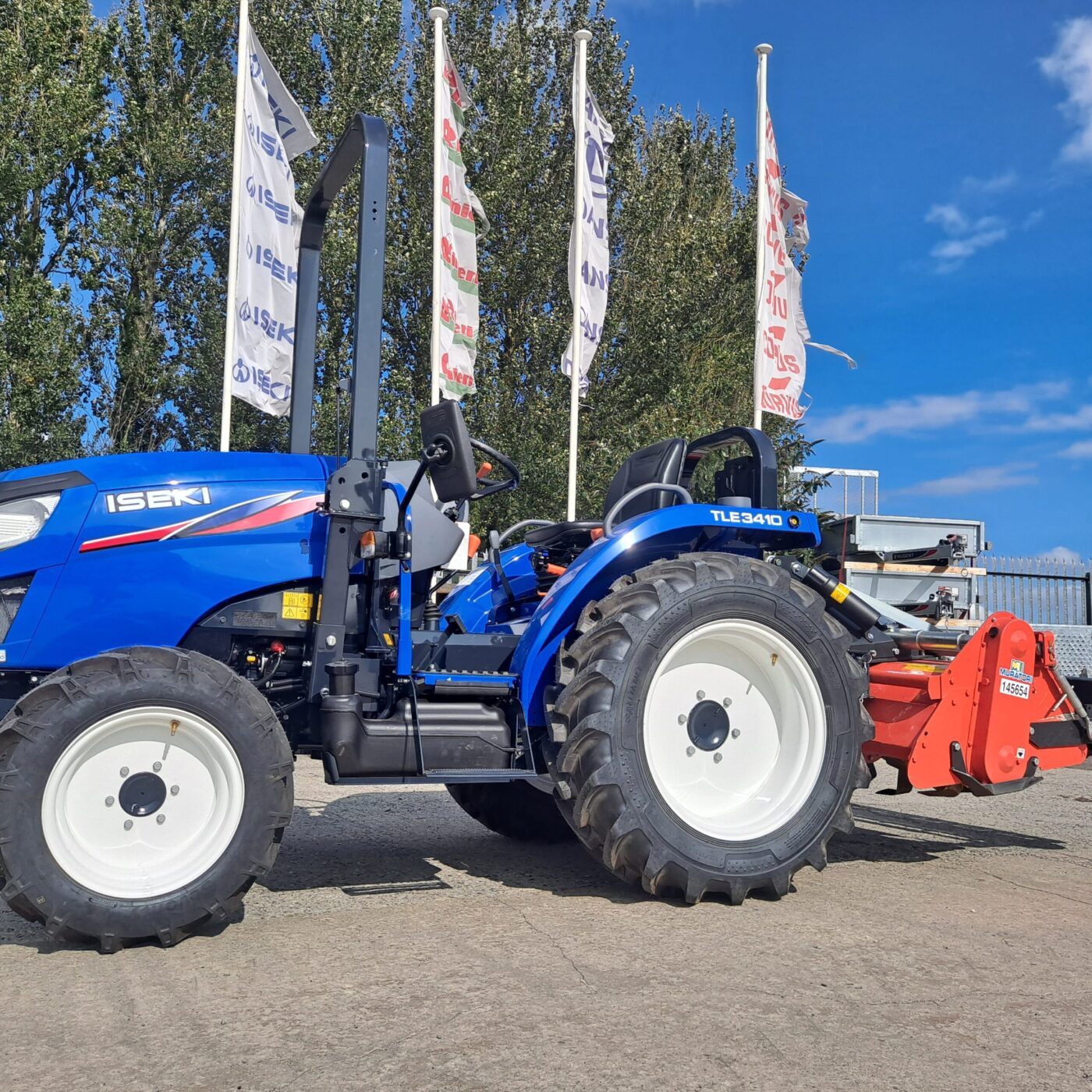

- 3-Cylinder 1826cc Turbo Diesel Engine with 40hp (TLE3410)
- F12/R12 Mechanical Transmission (TLE4550)
- F8/R8 Mechanical Transmission (TLE3410)
- 3-Speed Hydrostatic Transmission also available (TLE3410)
- Hydraulic Power Steering
- Selectable 2WD or 4WD
- Differential Lock
- Category 1 3-point linkage with lift capacity of 1,200kg
- 540rpm rear PTO with rear mounted remote switch for stationary use
- Optional mid-PTO 2,000rpm
- Mid or Rear ROPS
- 1 double acting spool valve as standard
Power and Performance
Perfect for a wide range of tasks the TLE3410 is powered by a reliable high capacity 1,826cc3-cylinder, 40hp diesel engine. For increased power and capability the TLE4550 has a 2,434cc, 4-cylinder, reliable 55hp diesel engine. Both engines offer high torque at 2,600rpm for lower vibration and noise levels for improved operator comfort whilst also causing less wear and tear on the engine itself.

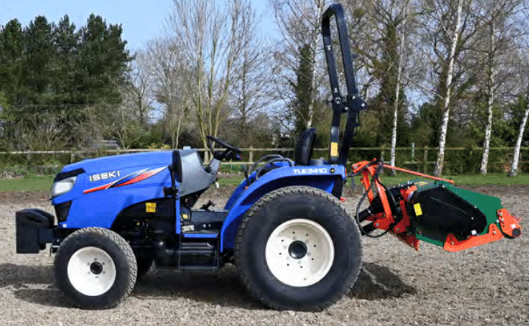

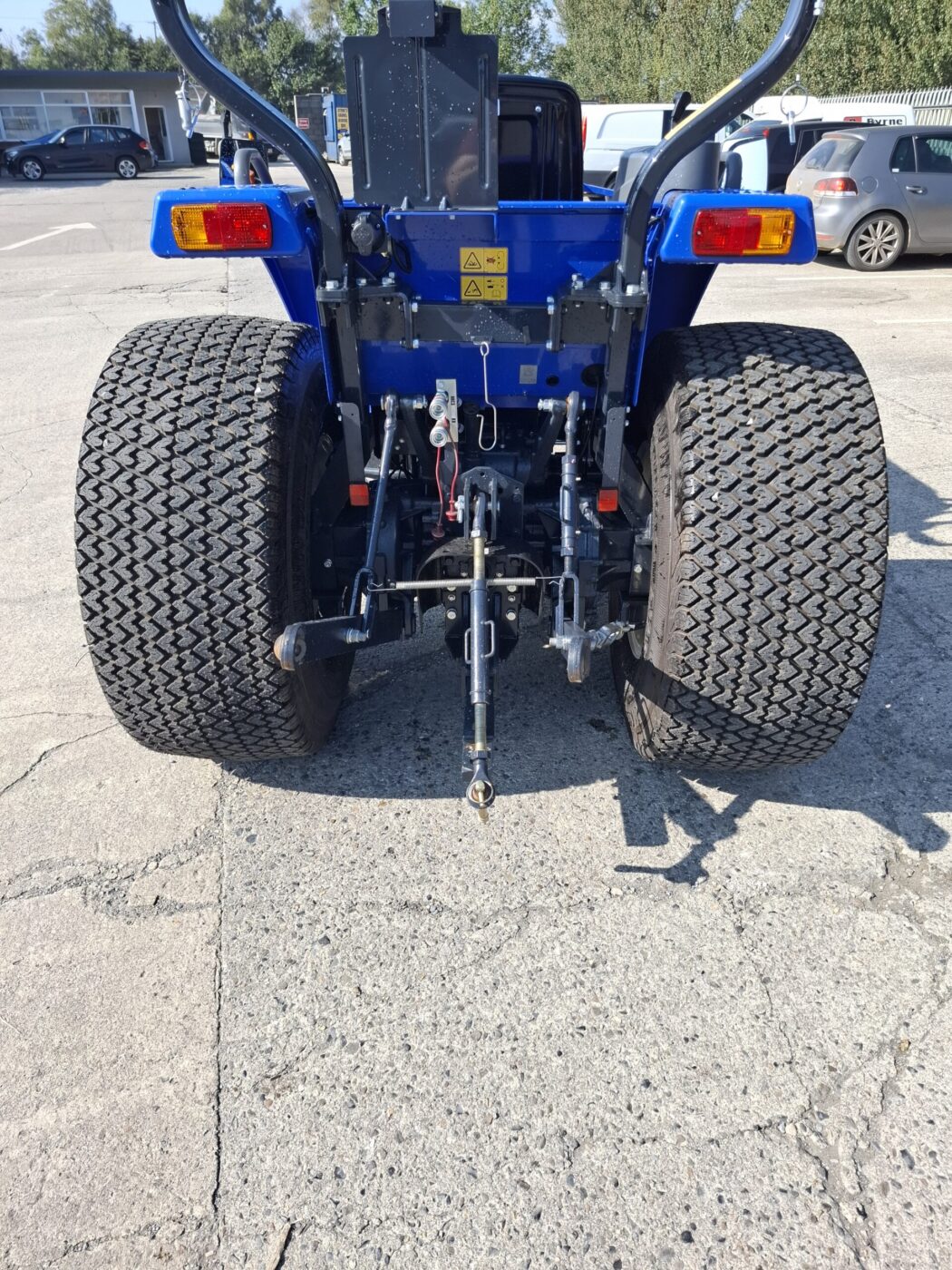

High Lift Capacity

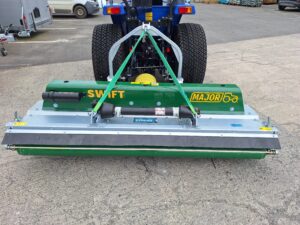

With a lift capacity of 1,200kg at theball ends for the TLE4550 and 1,000kg for the TLE3410, the Category 1, 3 point linkage allows this range to easily run a wide range of implements from mower decks through to sprayers, aerators,rotavators and harrows

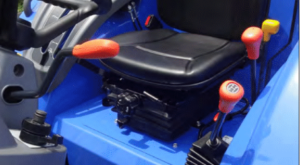

The Ultimate Control of a Mechanical
The TLE4550 and TLE3410 are built with a mechanical transmission for the ultimate control of speed. This is perfect for powering ground engaging equipment like aerators where speed consistency is essential to ensure the implement performs at its best.
Hydraulics
Equipped with 1 double acting spool valve as standard, an additional valve can be added where required for further functionality, such as controlling the lifting and folding of a trailed gang mower or the offset control of a rear-mounted flail.
Easy to use HST
Simple and easy to use, the TLE3410 HST is driven by a 3 range hydrostatic transmission. Ideal for where you have multiple users operating a tractor, or where fitted with a loader, it is effortless whilst maneuvering, constantly changing speed and direction.
Rear PTO
The TLE range is is manufactured complete with a single speed 540rpm rear PTO with standard and soft start for safe and easy use when powering implements. Stationary PTO control is supplied as standard allowing you to run equipment such as chippers or saw benches in a safe and controlled manner.
Mid PTO
Available on the TLE4550 as an additional option a Mid PTO at 2,000rpm can be fitted in order to run additional implements such as a mid mount mower deck or power a front PTO ensuring the tractor is used to its full capabilities.

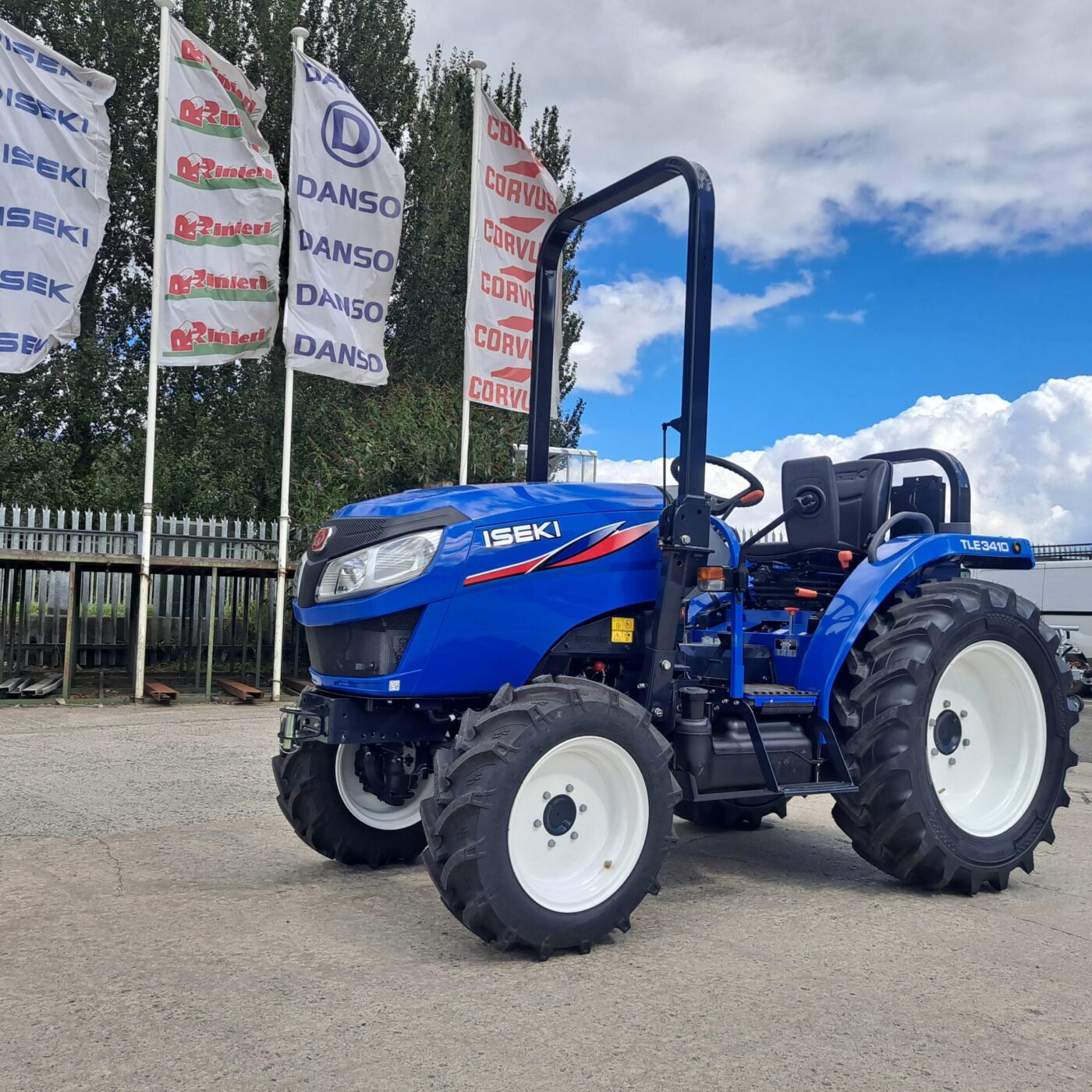

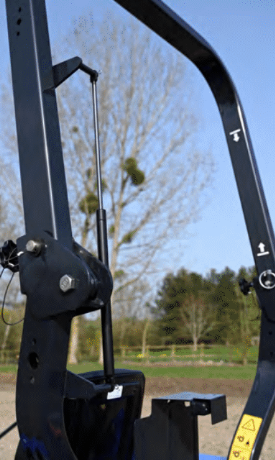

Foldable ROPS
The tractor is manufactured with certified and approved ROPS to ensure the safety of the operator is paramount. Where the ROPS need to be lowered in order to access storage areas, it is fitted with an assisted ram to help take the weight whilst folding down and raising up again.

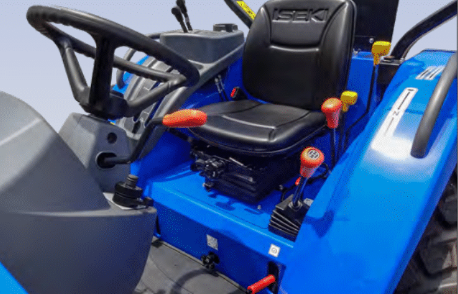

Comfortable Working
For long periods working on the tractor the low levels of vibration minimize operator fatigue. This is due to the high torque low revving engine. The flat spacious operator comfort gives maximum space and comfort whilst operating or getting on and off the machine. ISO Mounted platform for the ultimate comfort is standard on the TLE4550.

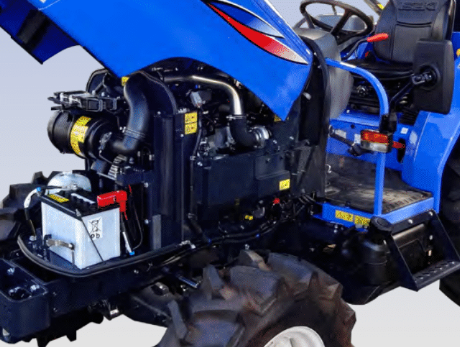

Easy Servicing and Maintenance
Simple to open and close, the hinged bonnet and clip fit side panels offer excellent easy access to perform regular maintenance checks on the engine and service points.
